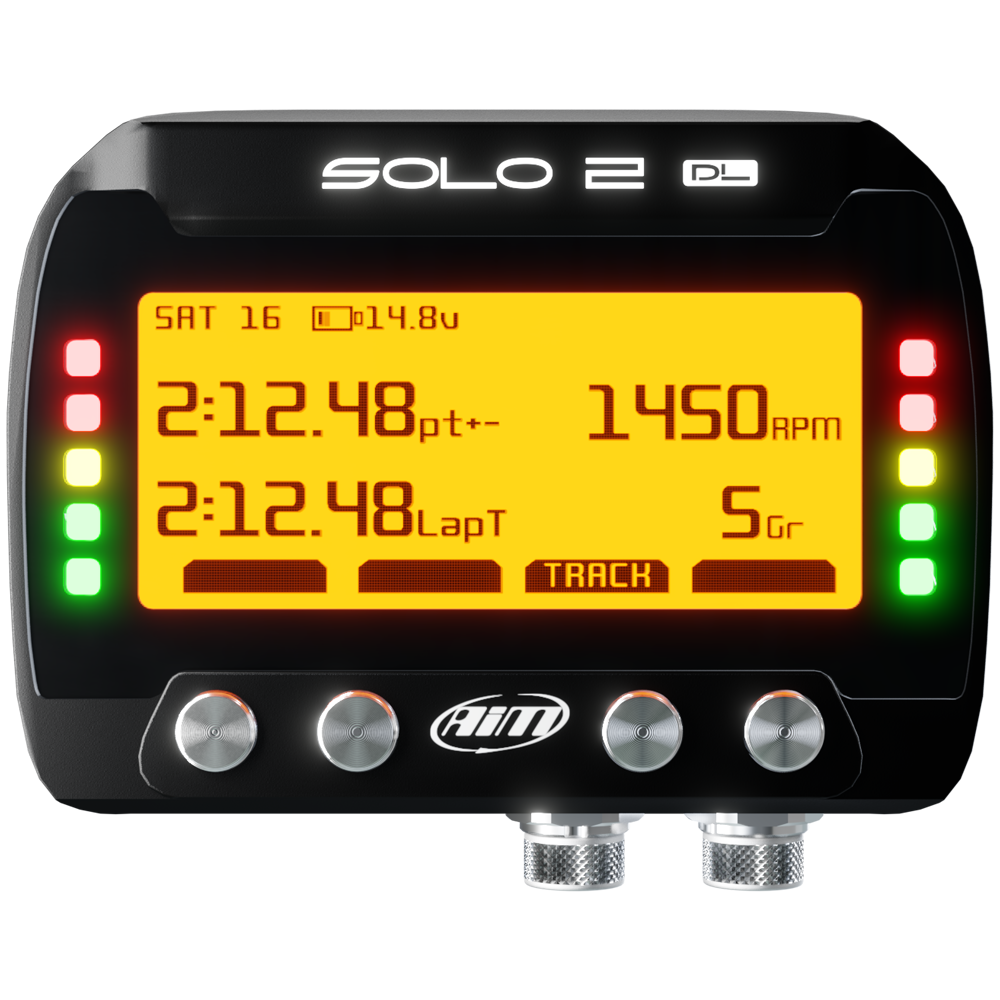

AiM Solo 2 DL GPS Lap Timer & Data Logger

AiM Solo 2 DL GPS Lap Timer & Data Logger

Regular price $799.00
Regular price Sale price $799.00
Sale Sold out

AiM Solo 2 DL: The Gold Standard GPS lap timer & data logger for motorsports

Solo DL 2 features all the functions of Solo 2, plus the ability to connect to your motorcycle's ECU: this makes the Solo DL 2 a powerful dash logger recording all the important data coming from the vehicle Engine Control Unit. Additional sensors and complicated wiring are not required anymore.

Solo DL 2 comes standard with your choice of an OBDII connector for stock ECU's equipped with an OBDII diagnostic port, or with a unterminated CAN/RS232 cable for interfacing with racing/aftermarket ECUs.

Bike-specific harnesses that allow plug-and-play connectivity with your bike's ECU are also available for an additional $20. If selected when you order, the plug-and-play harness will be included with your timer instead of the standard universal harness.

Bike-specific harnesses are only available for certain motorcycles. Please use the information below to find which cable is compatible with your bike.

ECU Cable

Applications

APRILIA

  • 2017+ RSV4 RR/RF
  • 2019+ RSV4 1100
  • 2017+ Tuono V4 RR/Factory
BMW
  • 2008-2019 S1000RR & HP4
DUCATI
  • 749 (All Years)
  • 848/EVO/EVO Corse (All Years)*
  • 899 Panigale (All Years)
  • 959 Panigale (All Years)
  • 999/S/R (All Years)
  • 1098/S/R (All Years)*
  • 1198/S/S Corse/R Corse/SP (All Years)*
  • 1199 Panigale/R (All Years)
  • 1299 Panigale (All Years)
  • Panigale V4 (All Years)
  • 2009-2011 Hypermotard
  • 2010-2011 Multistrada
Bikes denoted with "*" are compatible with the ECU cable only if they are factory equipped with a DDA (Ducati Data Analyzer) connector
HONDA
  • 2003-2019 CBR600RR
  • 2013-2015 CBR600RR w/ HRC ECU marked D11
  • 2004-2016 CBR1000RR
  • 2014-2016 CBR1000RR HRC
KAWASAKI
  • 2011+ Ninja ZX-10R
OBDII
  • 2006-2017 Triumph Daytona 675/R
  • 2007-2012 Triumph Street Triple/Speed Triple
  • 2015+ Yamaha R3 non-ABS (requires cutting the AiM harness and splicing K-Line wire to bike, call for details)
CAN/RS232
  • 2018+ Ducati Panigale V4
  • 2017+ Honda CBR1000RR/SP/SP2/HRC
  • 2013+ Kawasaki Ninja ZX-6R (636)
  • 2018+ Yamaha R3 ABS
SUZUKI
  • 2006-2019 GSX-R600/750
  • 2005-2019 GSX-R1000/R
  • 2008-2016 Hayabusa
YAMAHA-1
  • 2004-2008 YZF-R1
  • 2006-2016 YZF-R6
Includes YEC ECU's
YAMAHA-2
  • 2009-2014 YZF-R1
Includes YEC ECU's
YAMAHA-3
  • 2004-2005 YZF-R6
Includes YEC ECU's
YAMAHA-4
  • 2015+ YZF-R1/M
  • 2017+ YZF-R6
Includes YEC ECU's



The most precise and easy way to get lap times

The new Solo 2 receives the data from two satellites constellations, GPS and Glonass: this is a huge step forward since it is unbelievably faster and more precise than the previous version.
The power ON requires only a few seconds and the lap times are calculated with a max 2/100 sec of tolerance.

AiM Solo 2 backlight color options
The screen can be backlit in seven different colors



Find your track easily and quickly

Solo 2 can rely on a database of more than 3,000 tracks all over the world: as soon as it switches on, Solo 2 identifies its position, recognizes the starting line coordinates of the track and starts sampling lap times.

AiM Solo 2 Track Database

In case the track is not in the database, no problem: Solo 2 realizes it and enters into the auto-learning mode, automatically understands the characteristics of the track and gives the lap time anyway.



Predictive lap times

AiM Solo 2 RGB LEDs

The predictive lap time function is much more reliable in the new Solo 2, and the configurable RGB LEDs will give you a clear and fast indication of the comparison with your best lap.



Race Mode Selection

Solo 2 can manage different types of races:

  • Speed races in a closed circuit
  • Point-to-point races
  • Regularity
  • Performance tests (0-60mph, etc.)

In each of these configurations, Solo 2 gives the proper information during the test and powerful data review immediately after each session.



Data recall on screen

AiM Solo 2 Data Recall

At the end of your test, you can quickly review all the key information on your display.



Wi-Fi Enabled

Wi-Fi connection: easy, fast, without connectors nor cables: the best way to configure your Solo 2, to manage the track database, to download the data to your PC.



iPhone compatible

AiM Solo 2 iPhone Application
Use your iPhone for quick data analysis and for managing the track database.



ECU Connectivity

  • More than 1,000 protocols for 1,000+ ECU's in AiM's database
  • Option to build your own ECU drivers, if AiM does not have a configuration for your ECU available
  • Coil RPM Input: Solo 2 DL now features a digital input allowing you to log RPM either from square wave or pulse signals

AiM Solo 2 DL Data Logging



 Display
Graphical
 Display resolution
128x64 pixels
 Display pages
Up to 8 freely configurable
 Backlight
7 configurable RGB colors
 Shift lights/alarm LEDs
10 configurable RGB LEDs
 Integrated track database
Yes
 Inertial platform
Internal 3 axis ±5G accelerometer + 3 axis gyro
+ 3 axis magnetometer
 Wi-Fi connection
Yes
 GPS
10 Hz
 External power
12 V
 Memory
4 GB
 Battery type
Rechargeable Lithium
 Pushbuttons
Metallic
 Dimensions
98.0x73.7x30.2 mm
 Weight
240 g, battery included
 Waterproof
IP65
 Solo 2 DL
 ECU connection
CAN, RS232 or K-Line to 1,000 + industry leading ECUs
